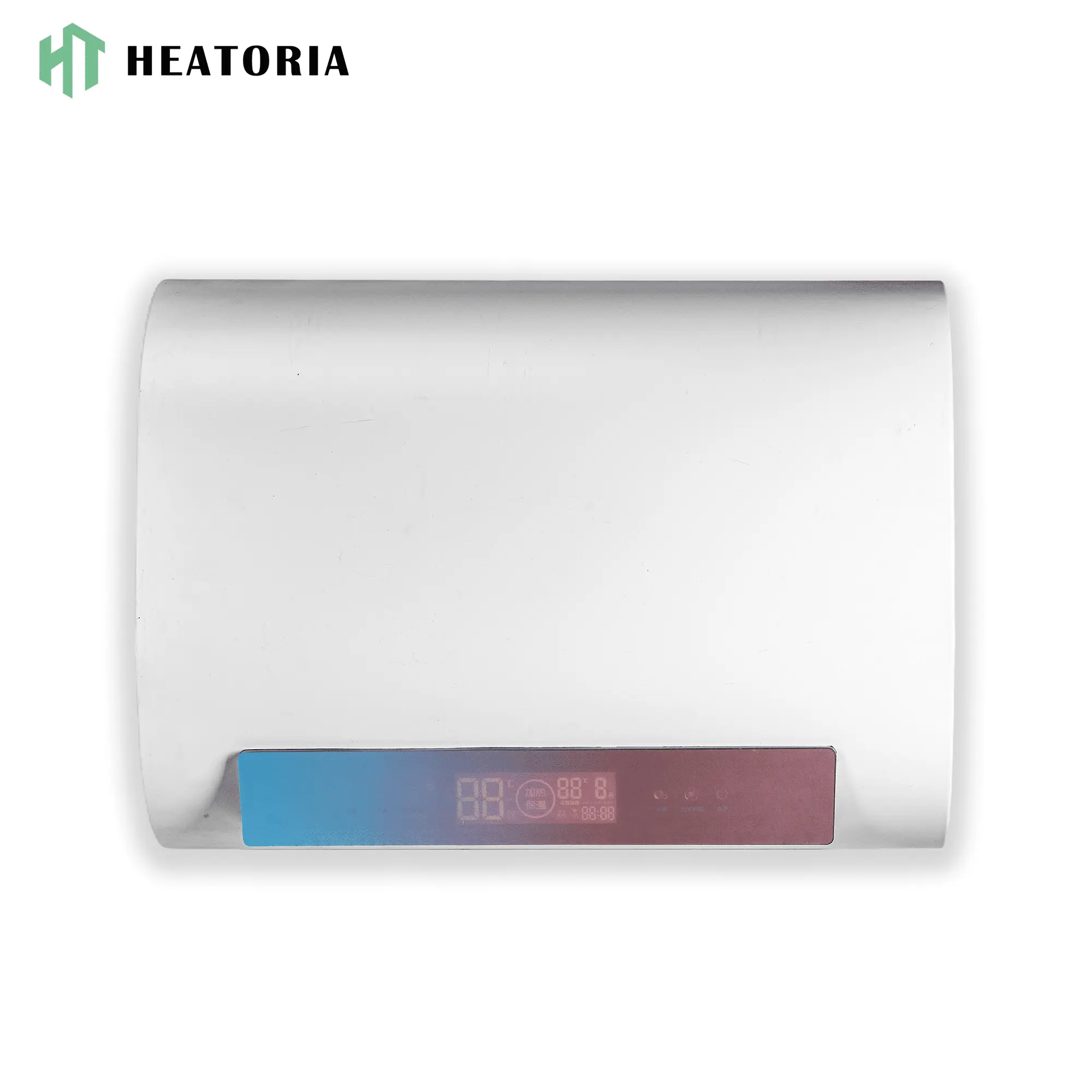

WB101
• German electrostatic dry-powder enamel inner tank, corrosion-resistant and highly durable, with a metal outer casing
• 360° high-pressure integrated PU foaming for superior heat insulation
• SUS316L heating element with high thermal efficiency
• Mechanical control with pointer or digital display; easy to operate
• Multiple safety protections: anti-leakage, over temperature protection, dry-heating prevention
Product Technical Specifications
Complete technical specifications and dimensional data for all product models
Electrical & Performance Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 200V~ |
| Rated Frequency | 50HZ |
| Rated Power | 2100W |
| Rated Pressure | 0.7MPa (±0.05) |
| Waterproof Rating | IPX4 |
| Temperature Setting Range | 35 ~ 75℃ |
Capacity & Dimensional Specifications
| Capacity (L) | Product Dimensions (mm) Length × Diameter | Net Weight (kg) | Packaging Dimensions (mm) L × W × H | Gross Weight (kg) | Volume (m³) |
|---|---|---|---|---|---|
| 30 | 520 × 380φ | 11 | 410 × 410 × 580 | 12.5 | 0.10 |
| 40 | 620 × 380φ | 13 | 440 × 440 × 680 | 14.5 | 0.13 |
| 50 | 660 × 410φ | 15 | 470 × 470 × 720 | 17.5 | 0.16 |
| 60 | 760 × 410φ | 19 | 470 × 470 × 780 | 21 | 0.17 |
| 80 | 880 × 410φ | 22 | 470 × 470 × 920 | 24 | 0.20 |
Notes:
- All specifications are measured under standard testing conditions and may vary slightly in actual use due to environmental factors.
- Product dimensions are approximate and subject to change without notice.
- IPX4 waterproof rating indicates protection against water splashes from any direction.
- All models feature the same electrical specifications and differ only in capacity and dimensions.
