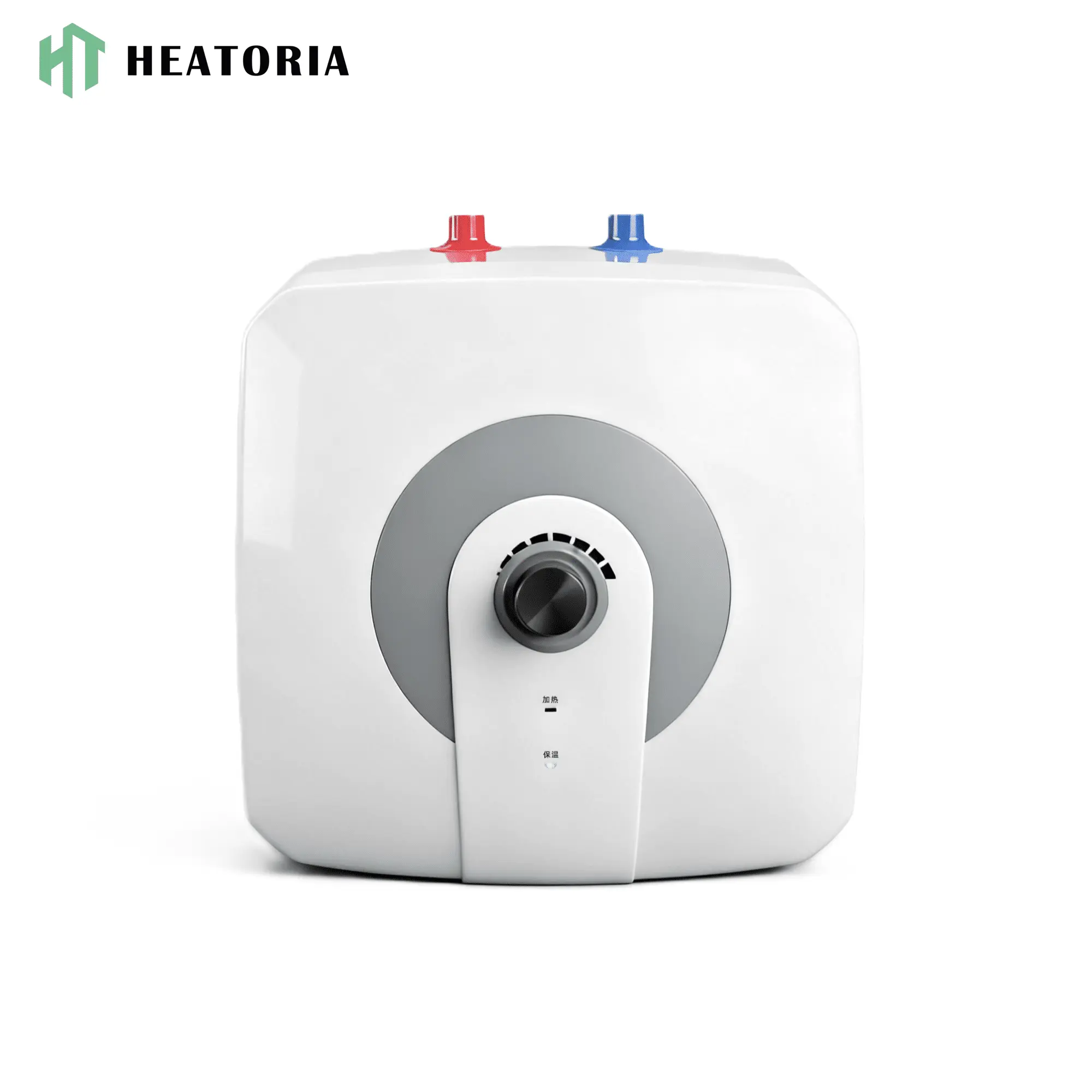

CB04
• Thickened stainless-steel inner tank, corrosion resistant, pressure-resistant, rust-proof, with ABS outer casing
• Integrated seamless assembly, waterproof, stain resistant, and excellent heat insulation
• SUS316L heating element offering high hot-water output efficiency
• Mechanical control, pointer or digital display; simple and convenient operation
• Multiple protections: anti-leakage, over-temperature protection, dry-heating prevention
Product Technical Specifications
Complete technical specifications and dimensional data for all product models
Electrical & Performance Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 110V~220V |
| Rated Frequency | 50HZ |
| Rated Power | 1500W |
| Rated Pressure | 0.8MPa (±0.05) |
| Waterproof Rating | IPX4 |
| Temperature Setting Range | 35 ~ 65℃ |
Capacity & Dimensional Specifications
| Capacity (L) | Product Dimensions (mm) L × W × H | Net Weight (kg) | Packaging Dimensions (mm) L × W × H | Gross Weight (kg) | Volume (m³) |
|---|---|---|---|---|---|
| 8 | 285 × 285 × 285 | 7 | 310 × 310 × 310 | 8.5 | 0.030 |
| 10 | 357 × 350 × 303 | 8.5 | 390 × 380 × 335 | 10 | 0.050 |
| 15 | 357 × 350 × 303 | 10.5 | 390 × 380 × 335 | 12.5 | 0.050 |
Notes:
- All specifications are measured under standard testing conditions and may vary slightly in actual use due to environmental factors.
- Product dimensions are approximate and subject to change without notice.
- IPX4 waterproof rating indicates protection against water splashes from any direction.
- All models feature the same electrical specifications and differ only in capacity and dimensions.
