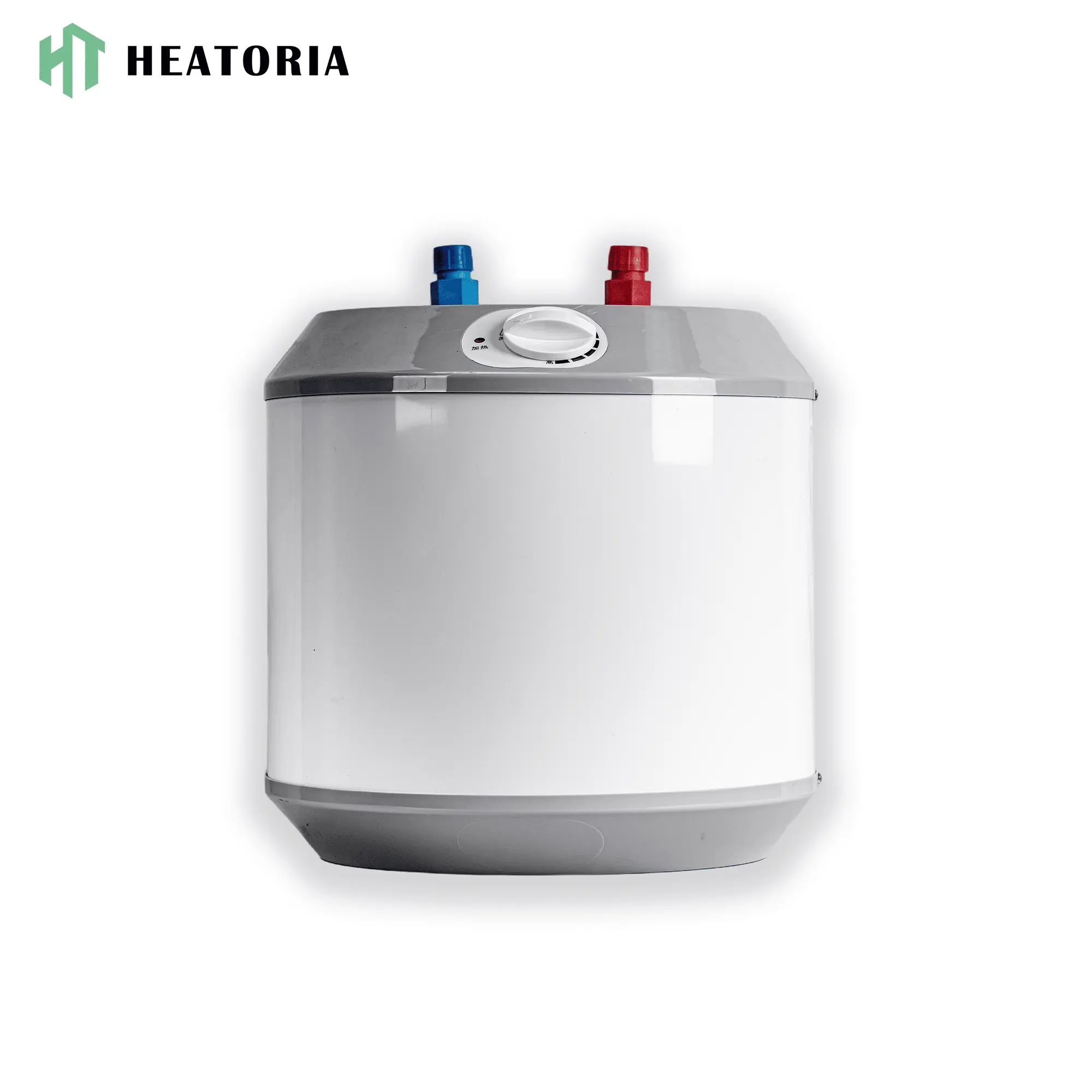

CB02
• Thickened stainless-steel inner tank, corrosion resistant, pressure-resistant, rust-proof, with ABS outer casing
• Integrated seamless assembly, waterproof, stain resistant, and excellent heat insulation
• SUS316L heating element offering high hot-water output efficiency
• Mechanical control, pointer or digital display; simple and convenient operation
• Multiple protections: anti-leakage, over-temperature protection, dry-heating prevention
Product Technical Specifications
Complete technical specifications and dimensional data for all product models
Electrical & Performance Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 110V~220V |
| Rated Frequency | 50HZ |
| Rated Power | 1500W |
| Rated Pressure | 0.7MPa (±0.05) |
| Waterproof Rating | IPX4 |
| Temperature Setting Range | 35 ~ 75℃ |
Capacity & Dimensional Specifications
| Capacity (L) | Product Dimensions (mm) L × W × H | Net Weight (kg) | Packaging Dimensions (mm) L × W × H | Gross Weight (kg) | Volume (m³) |
|---|---|---|---|---|---|
| 8 | 320 × 275 × 315 | 5 | 405 × 360 × 400 | 6.5 | 0.058 |
| 10 | 320 × 275 × 370 | 6 | 405 × 360 × 455 | 7.5 | 0.066 |
| 15 | 320 × 275 × 495 | 8 | 405 × 360 × 580 | 10 | 0.085 |
| 20 | 320 × 275 × 610 | 10 | 405 × 360 × 755 | 12 | 0.110 |
Notes:
- All specifications are measured under standard testing conditions and may vary slightly in actual use due to environmental factors.
- Product dimensions are approximate and subject to change without notice.
- IPX4 waterproof rating indicates protection against water splashes from any direction.
- All models feature the same electrical specifications and differ only in capacity and dimensions.
